Dog cage

The dog enclosure is created in the dimension of 1cm. Natural size is 2.3mx4.0mx1.9m.

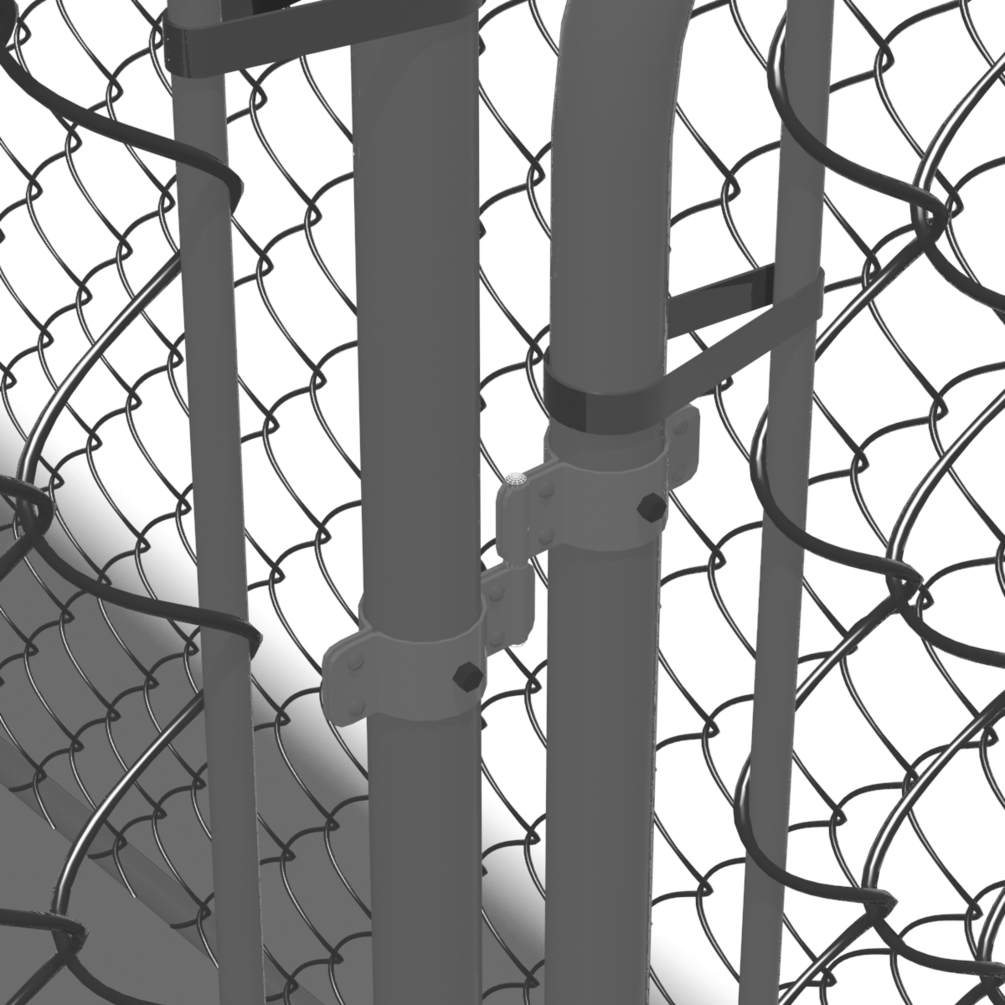

Covered with draped awning. Has a lockable wicket door, hinged. Hinges unrigged, but, have aligned pivots.

All vertical planes are covered with a "rabitz" polygonal mesh. With the exception of the wicket - all walls are covered with a single piece of "rabitz" mesh.

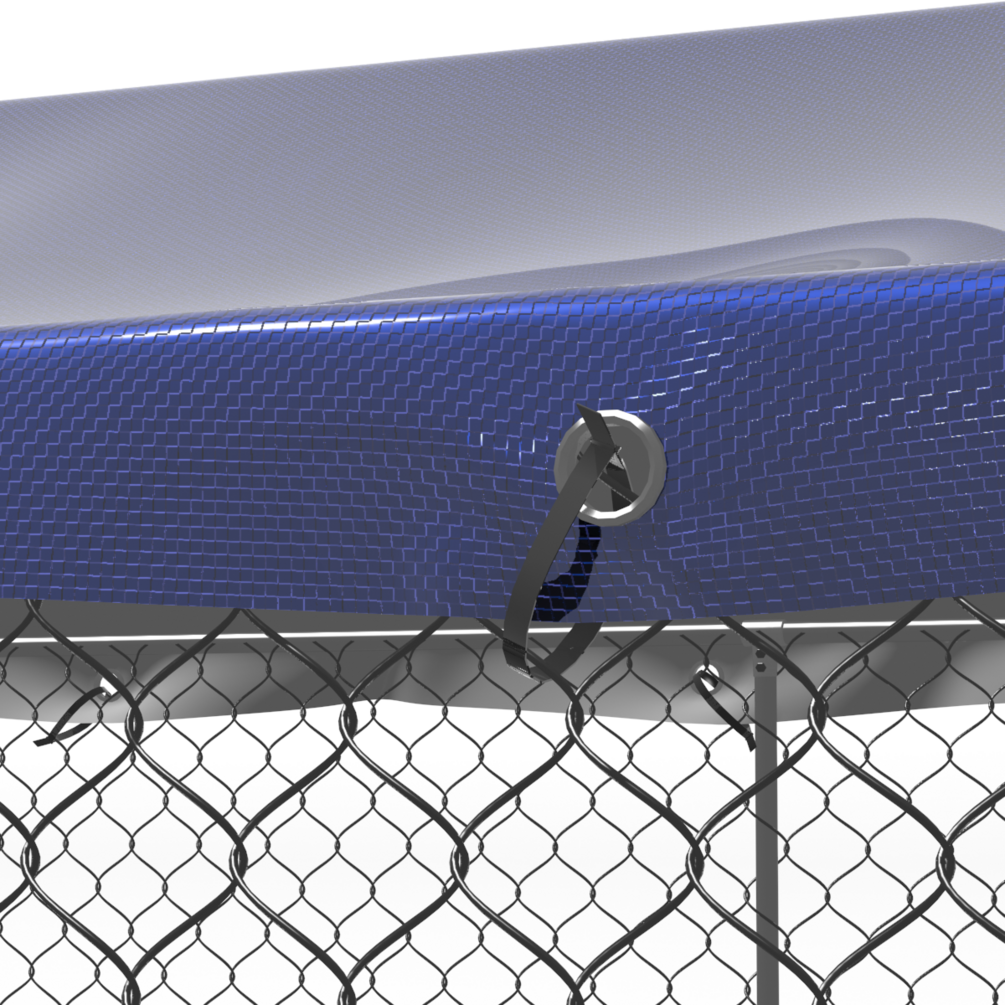

The awning was added with the "cloth" modifier, its stretching was accentuated by the fastening rings, fixed with ties on the mesh of the railing and the supporting tubes of the frame. The awning is textured for example by "physical texture", in order to emphasize the resulting drapery.

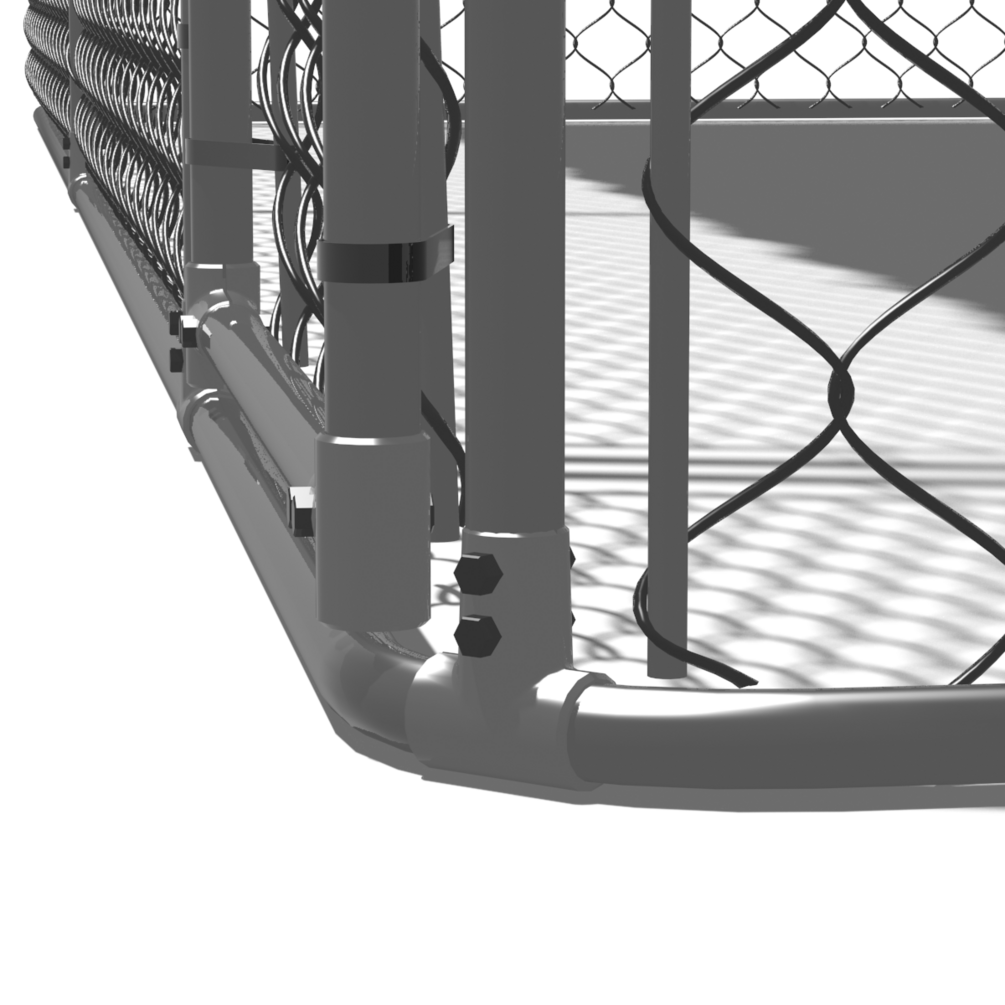

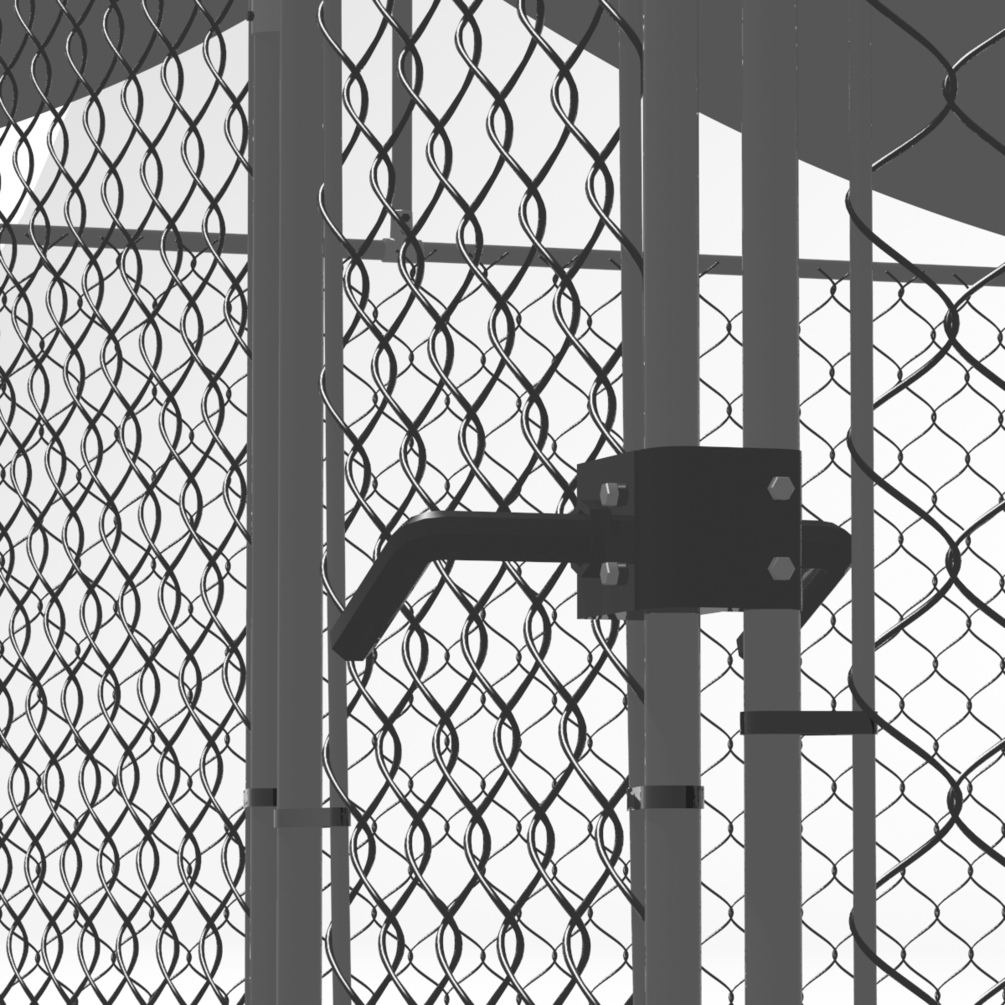

Wicket lock and hinges, as well as frame t-connectors are detailed with threaded fasteners.

All elements are hierarchically grouped and finally - grouped into the main functional layers: roof, frame, wicket.

"Wire"-renders maked with corona wire-texture mtl (not included in mat.lib.).
